2.5mm² 2 Wire Feeding Automatic Wire Cut Stripping Machine

2.5mm² 2 Wire Feeding Automatic Wire Cut Stripping Machine

Model : HS-BX01-2L
Wire cross-section : 0.1 – 2.5 mm² AWG 13 – 27
Max Wire Diameter : 5 mm
Product description: HS-BX01-2L

Product introduction

HS-BX01-2L Wire Stripping Machine

2.5mm² 2 wire feeding

HS-BX01-2L is an ultra-compact high-speed machine for reliable controlled processing of the smallest cross-sections from 0.1 mm² to 2.5 mm² wire harness:

1. Ultra-fast cutting and stripping for high production output;
2. Powerful drive axles for extremely high cable transport speeds;
3. Memory for process parameters;
4. Double-line working;

Technical Data：

Machine Name	Automated Cutting & Stripping Machine
Model	HS - BX 01-2L
Dimensions (W x H x D)	510 x 510 x 415 mm (20 x 20 x 16.3 in.)
Weight	32 kg (71 lbs)
Working power	AC220V/AC110V 50Hz/60Hz
Pneumatic connection	Optional for blade cleaning
Wire cross-section range	AWG13#~AWG27# (0.1 – 2.5 mm²)
Wire cut length range	1~99999.9mm (0.039 in. –3937in.)
Wire Strip length range	Side 1(front)：0~30mm (0~1.18in.) Side 2 (behind) : 0－30mm (0~1.18in.)
Length accuracy	± (0.2 % *Length)

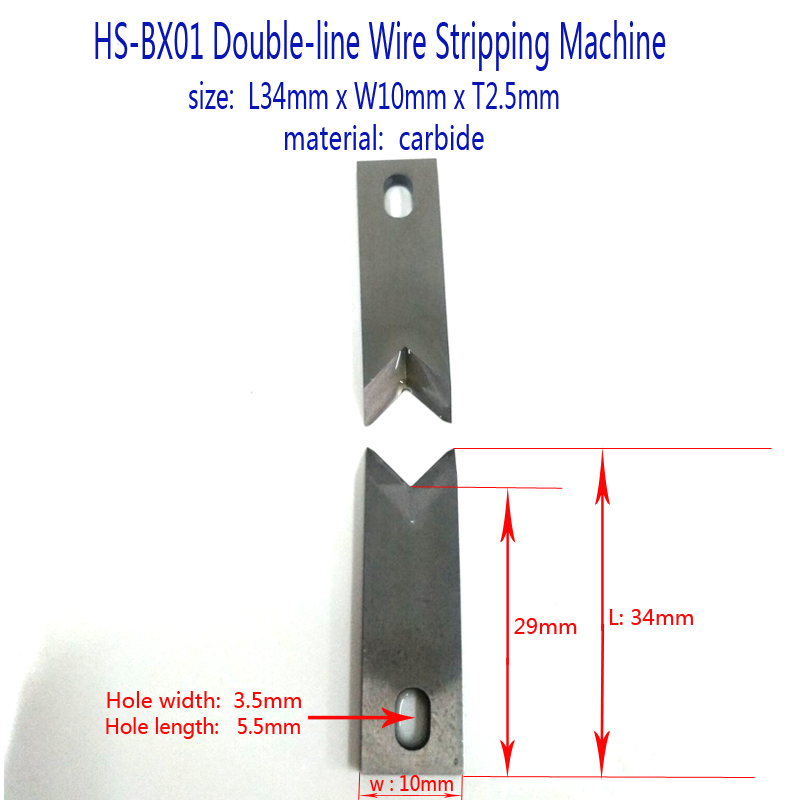

Blades material	Tungsten Carbide
Wire transport speed	can adjust from 1-9
Drive system	4 Wheel drive
