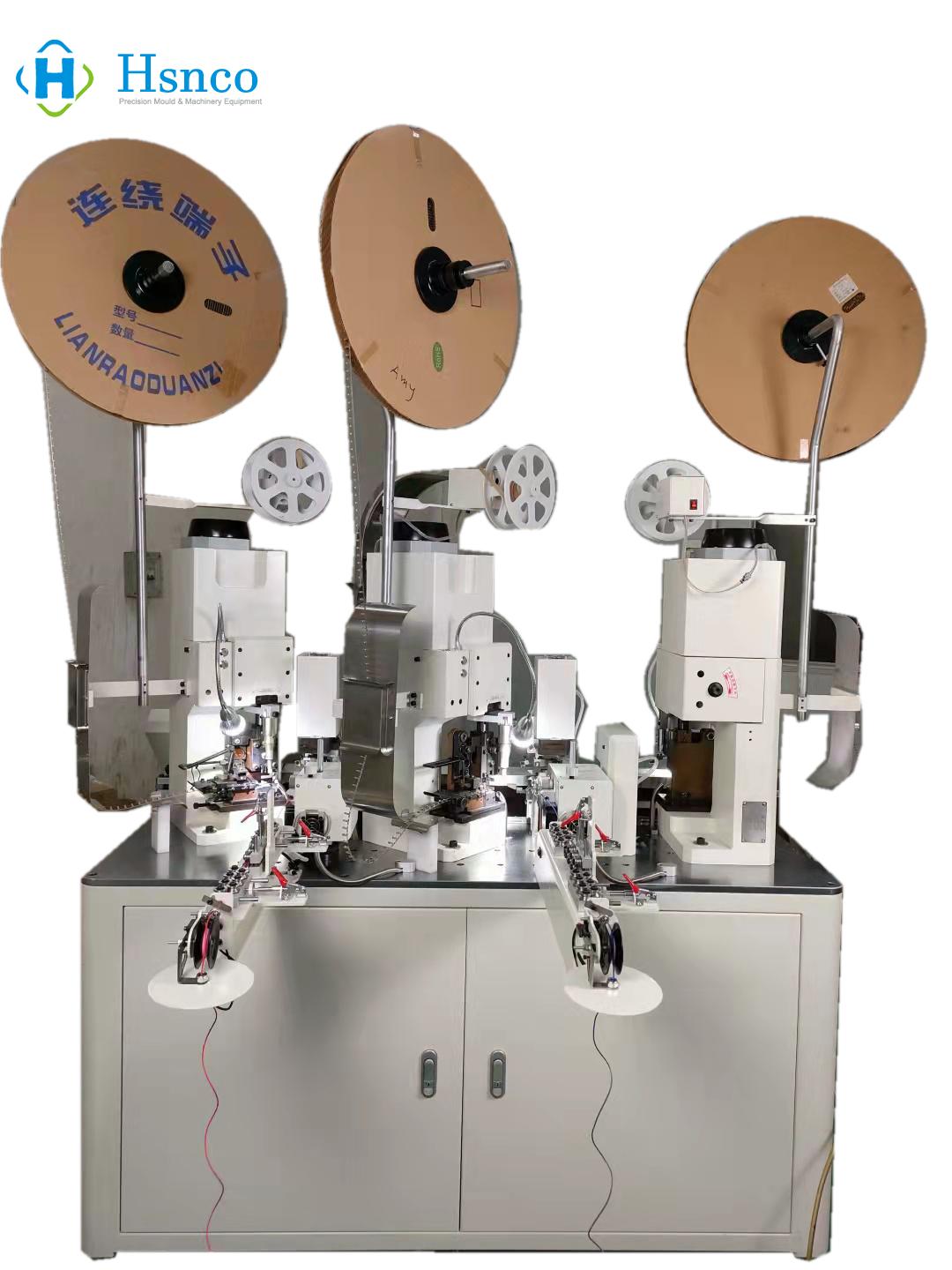

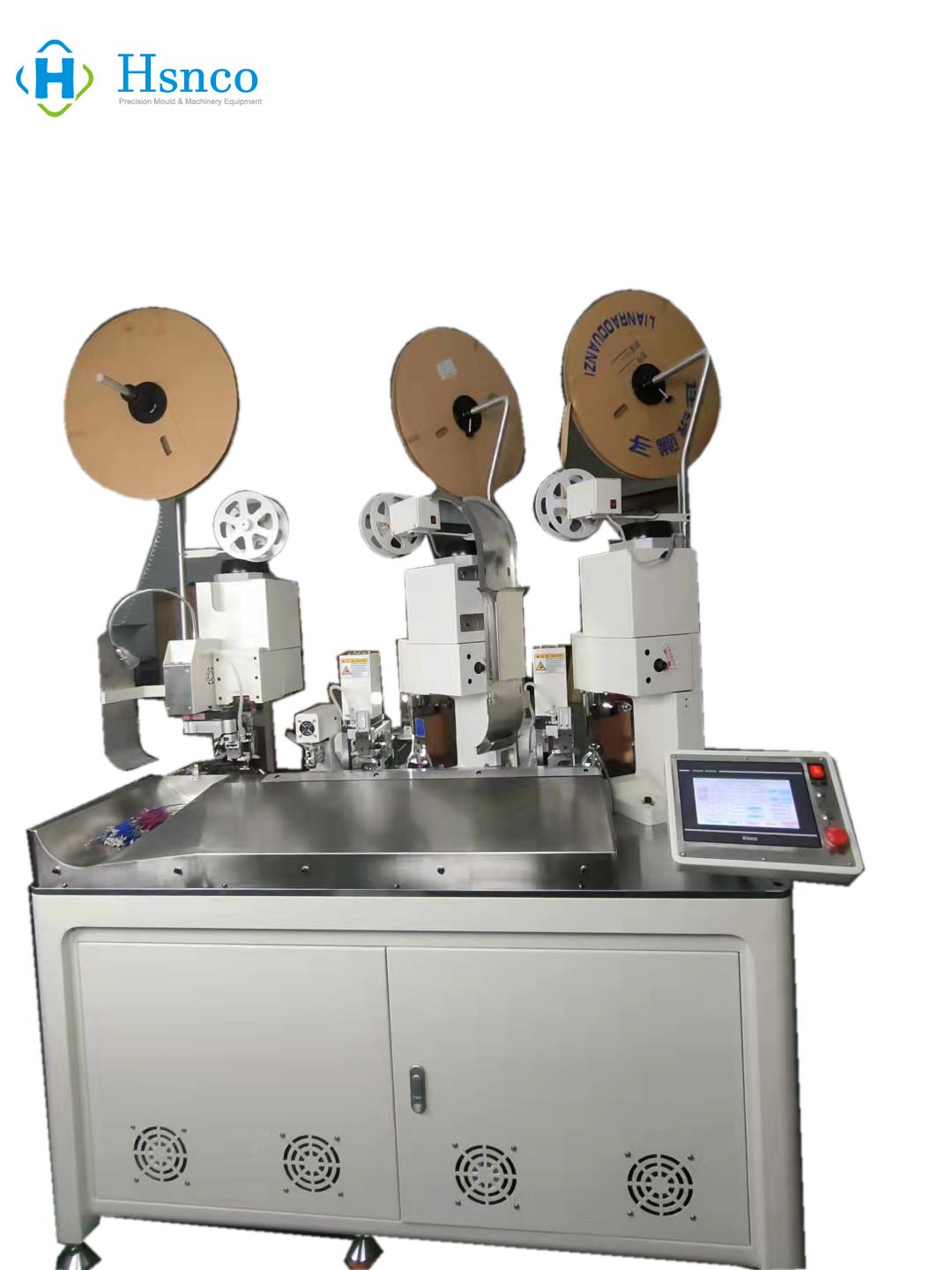

Automatic Three Ends Terminal Crimping Machine
- Cutting length：50mm----9999mm
- Cutting precision：below 0.1mm+L*0.2% L=cutting length
- Striping Length：A side：0 ~ 10mm B side：0 ~ 13mm
- Applicable wire range：AWG #14 ~ AWG#34
- Product description:
Product introduction
| Function | Wire cutting,double head half-strip,one head crimping,double head crimping,two wires with double head crimping,two wires with three terminal crimping. |
| Power | AC220V 50/60Hz |
| Operation mode | Manual,single mode,Automatic |
| Speed | 3100(Wire length<300m) |
| Cutting length | 50mm----9999mm |
| Cutting precision | below 0.1mm+L*0.2% L=cutting length |
| Striping Length | A side：0 ~ 10mm B side：0 ~ 13mm |
| Applicable wire range | AWG #14 ~ AWG#34 |
| Air supply | 5 ~ 6kgs Dry and clean |
| Terminal crimping machine force | 2Ton /3Ton |
| Detection Device | Wire sensor(knot and missing ),terminal sensor(pressure and missing ),air supply sensor |
| Dimension | 1400L*900W*1450H(mm) |
| Weight | 600KG |
| Language | Touch screen with both Chinese and English |
