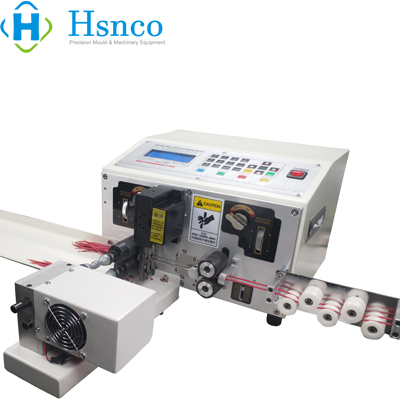

2.5mm² Automatic Wire Cut Stripping &Twisting Machine
- Model : HS-BX03
- Wire cross-section : 0.1 – 2.5 mm² AWG 27 – 13
- Max Wire Diameter : 5mm
- Product description: HS-BX03
Product introduction
2.5mm² Automatic Wire Cut Stripping &Twisting Machine
Technical Data：
|
Machine Name |
Automatic Wire Cutting & Stripping & Twisting Machine |
|
Model |
HS - BX 03 |
|
Dimensions (W x H x D) |
510 x 510 x 415 mm (20 x 20 x 16.3 in.) |
|
Weight |
39 kg |
|
Working power |
AC220V/AC110V 50Hz/60Hz |
|
Pneumatic connection |
Optional for blade cleaning |
|
Wire cross-section range |
AWG13#~AWG27# (0.1 – 2.5 mm²) |
|
Wire cut length range |
1~99999.9mm (0.039 in. –3937in.) |
|
Wire Strip length range |
Side 1(front)：0~30mm (0~1.18in.) Side 2 (behind) : 0－30mm (0~1.18in.) |
|
Length accuracy |
± (0.2 % *Length) |
|
Blades material |
Tungsten Carbide |
|
Wire transport speed |
can adjust from 1-9 |
|
Drive system |
4 Wheel drive |
