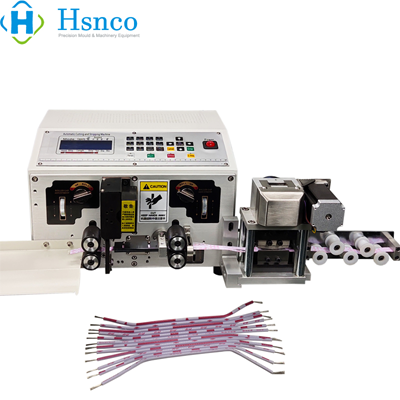

HS-BX10 Ribbon Cable Stripping Machine Flat Ribbon Cable Cut Slit and Strip
- Model：HS-BX10
- Wire cross-section:2PIN - 12PIN
- Wire Width:Max width 20mm
- Product description: HS-BX10
Product introduction
HS-BX10 Ribbon Cable Stripping Machine Flat Ribbon Cable Cut Slit and Strip
Technical Data：
| Name | Automatic Ribbon Cable Cut & Sliding & Stripping Machine |
| Wire Range |
2PIN - 12PIN Max: 12Pin Max Ribbon width: 20mm |
| Cutting Length | 0-9999mm |
| Stripping Length | Front 1-30mm End 1-30mm |
| Splitting Length | 1-9999.9 |
| Wire Guide Size I.D | Special for the flat cable |
| Sliding Drive mode | by Step Motor slit flat ribbon cable |
| Stripping Drive Mode | 4 wheel drive |
| Blade | High Speed Steel |
| Speed adjust | 1-9 |
| Power | AC220/50Hz AC110/60Hz |
| Toleracne | ±0.2%*Length |
|
Machine weight |
40kg |
