Your position: Home > Wire Stripping Machine

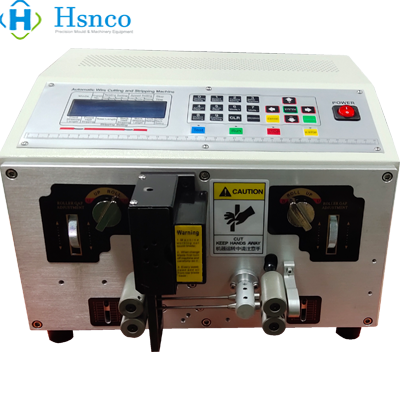

Automatic Cable Cut Stripping Machine
- Model：HS-BX12
- Wire Range:0.01-2.5mm2
- Cutting Length:0-99999mm
- Product description: HS-BX12
Product introduction
Automatic Cable Cut & Stripping Machine
2.5mm²
Technical Data：
|
Machine Name |
Automatic Cable Cut & Stripping Machine |
|
Model |
HS-BX012 |
|
Dimensions (W x H x D) |
510 x 510 x 415 mm |
|
Weight |
33KG |
| Working Power |
AC220/50Hz AC110/60Hz |
|
Pneumatic connection |
Optional for blade cleaning |
|
Wire range |
0.01-2.5mm2 |
|
Wire cut length range |
0-99999mm |
|
Wire Strip length range |
Side 1(front)：1~30mm ,Side 2 (behind) : 1－30mm |
|
Length accuracy |
± (0.2 % *Length) |
|
Blades material |
High Speed Steel Blade |
|
Wire transport speed |
can adjust from 1-9 |
|
Drive system |
4 Wheel drive |
|
Wire material |
PVC |
