Your position: Home > Wire Stripping Machine

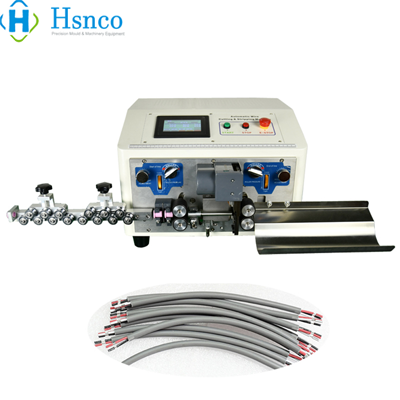

Automatic Multi core inner wires outside jacket Stripping Machine
- Model：HS-BX905
- Stripping Inner length：Front 1-30mm, End 1-30mm
- Stripping Jacket length：Front 1-250mm, End 1-70mm
- Product description: HS-BX905
Product introduction

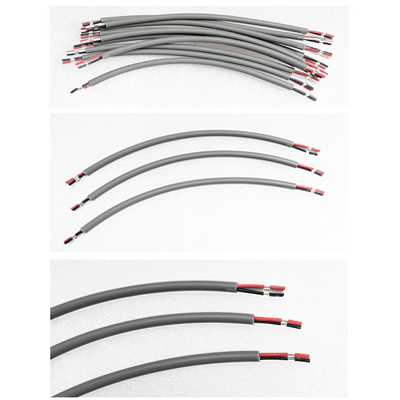

Automatic Multi core inner wires & outside jacket Stripping Machine
Technical Data：
|
Machine Name |
Automatic Multi core inner wires & outside jacket Stripping Machine |
|
Model |
HS-BX0905 |
|
Dimensions (W x H x D) |
510 x 510 x 415 mm |
|
Weight |
32KG |
| Working Power |
AC220/50Hz AC110/60Hz |
|
Pneumatic connection |
Optional for blade cleaning |
|
Wire range |
2 Conductor - 4 Conductor Max Outside Jacket Dia : 6mm |
|
Wire cut length range |
0-99999mm |
|
Stripping Inner length |
Front 1-30mm, End 1-30mm |
|
Stripping Jacket length |
Front 1-250mm, End 1-70mm |
|
Length accuracy |
± (0.2 % *Length) |
|
Blade |
Tungsten carbide |
|
Wire transport speed |
can adjust from 1-9 |
|
Drive system |
4 Wheel drive |
|
With Stripping Machine Stanard Parts |
4 set (4pcs)Wire Guide Pipe 1 set (4pcs) for soft wire plastic yellow roller 1 set (6pcs) hand tool for open the screw |
