Your position: Home > Wire Stripping Machine

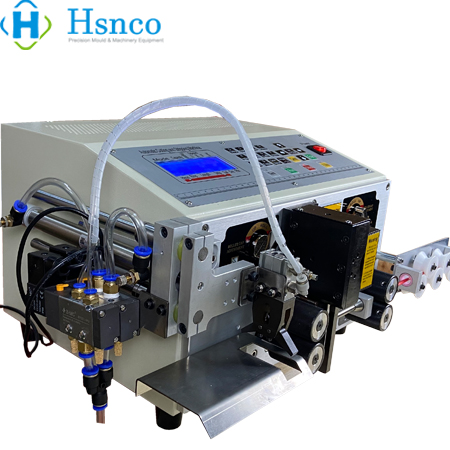

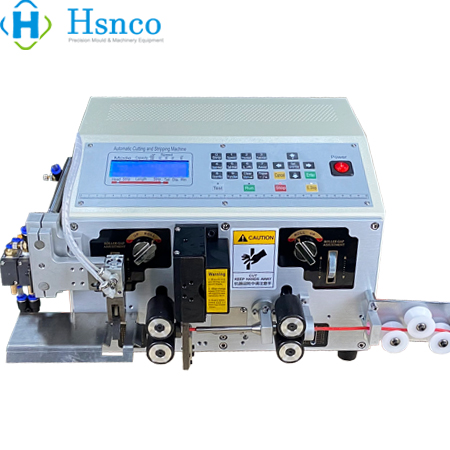

10mm² Automatic Wire Stripping Machine with Gripper
- Model : HS-BX04
- Wire cross-section : 1 – 10 mm² AWG 7 – 17
- Max Wire Diameter : 10mm
- Product description: HS-BX04
Product introduction
Automatic Single core & Multi Core Cut & Stripping Machine with Gripper
10mm²
Technical Data：
| Maciane Name |
Single core & Multi Core Cut &Stripping Machine |
| Model | HS-BX04 |
|
Dimensions (W x H x D) |
510 x 510 x 415 mm (20 x 20 x 16.3 in.) |
|
Weight |
34KG |
|
Working power |
AC220/50Hz AC110/60Hz 300W |
|
Pneumatic connection |
Optional for blade cleaning |
|
Wire cross-section range |
1mm²- 10mm² (AWG17 - AWG7)
2x0.5mm² - 3x1mm² Max cable OD 7mm
|
|
Wire cut length range |
1~99999.9mm (0.039 in. –3937in.) |
|
Wire Strip length range |
Side 1(front)：0~150mm ,Side 2 (behind) : 0－80mm |
|
Length accuracy |
± (0.2 % *Length) |
|
Blades material |
Tungsten Carbide |
|
Wire transport speed |
can adjust from 1-9 |
|
Drive system |
4 Wheel drive |
|
Wire material |
PVC |
