Your position: Home > Wire Stripping Machine

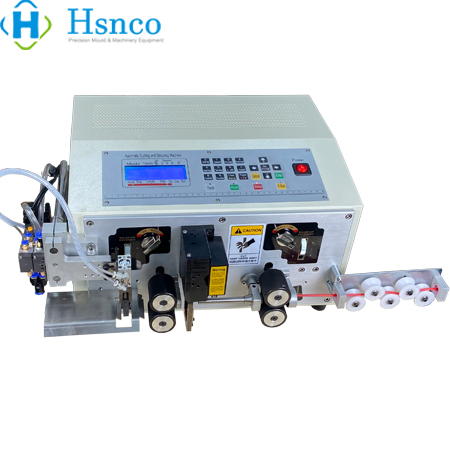

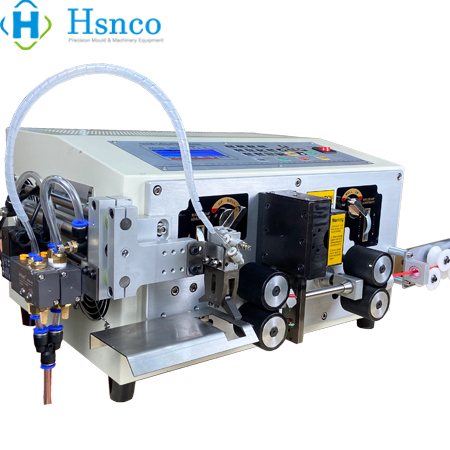

16mm² Automatic Wire Cut Stripping Machine with Gripper
- Model : HS-BX06
- Wire cross-section : 1 – 16 mm²
- Max Wire Diameter : 16mm
- Product description: HS-BX06
Product introduction
Automatic Multi Core & Single Cable Cut&
Stripping Machine with Gripper
16mm²
Technical Data：
|
Machine Name |
Automatic Multi Core & Single Cable Cut& Stripping Machine |
|
Model |
HS-BX06 |
|
Dimensions (W x H x D) |
510 x 510 x 415 mm |
|
Weight |
45KG |
| Working Power |
AC220/50Hz AC110/60Hz 630W |
|
Pneumatic connection |
Optional for blade cleaning |
|
Wire cross-sectionrange |
1mm² -16mm² (AWG17 - AWG5) Multi core cable max o.d 12mm |
|
Wire cut length range |
1~99999.9mm (0.039 in. –3937in.) |
|
Wire Strip length range |
Side 1(front)：0~150mm ,Side 2 (behind) : 0－80mm |
|
Length accuracy |
± (0.2 % *Length) |
|
Blades material |
High Speed Steel Blade |
|
Wire transport speed |
can adjust from 1-9 |
|
Drive system |
4 Wheel drive |
|
Wire material |
PVC |
